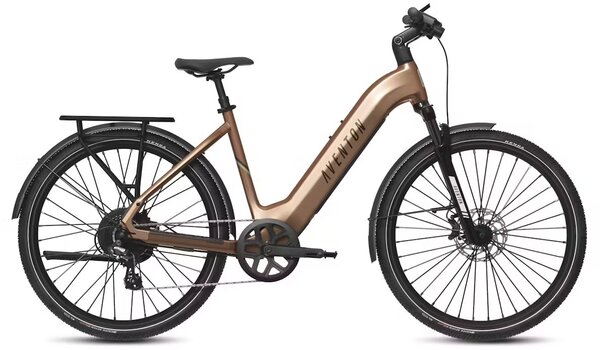

Aventon Level 3 Step Through E-Bike
$1,899.00
Details
Upgrade your daily commute with the all-new Level 3 e-bike. Designed for both comfort and practicality, it features a rear rack and fenders to keep you and your gear clean and dry, plus front and seat post suspension for smoother rides on rough terrain. The advanced ACU system offers GPS tracking, auto-lock, movement alerts, and an alarm for added security. With a customizable fit and improved motor tuning, the Level 3 delivers up to 10 more miles of range than previous models. Say goodbye to traffic and enjoy a smarter, more comfortable ride.

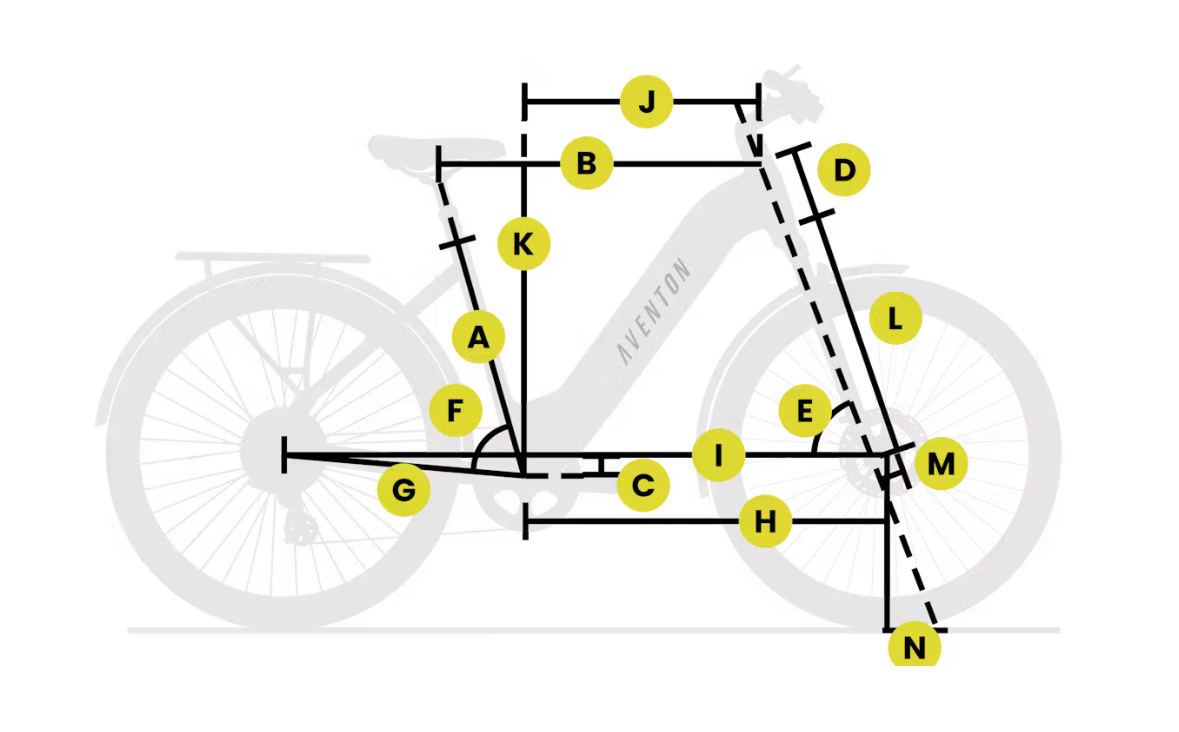

| Frame Size | Regular | Large |
|---|---|---|
| A - Seat Tube Length | 400mm (15") | 480mm (18") |
| B - Top Tube Length Horizontal | 607mm (23") | 634mm (25") |
| C - Bottom Bracket Drop | 50mm (2") | 50mm (2") |
| D - Head Tube Length | 130mm (5") | 130mm (5") |
| E - Head Tube Angle | 70° | 70° |
| F - Seat Tube Angle | 74° | 74° |
| G - Rear Chainstay Length | 480mm (18") | 480mm (18") |
| H - Front Wheel Center | 675mm (26") | 701mm (27") |
| I - Wheelbase | 1150mm (45") | 1176.8mm (46") |
| J - Reach | 423mm (16") | 450mm (17") |
| K - Stack Height | 610mm (24") | 610mm (24") |
| L - Fork Length | 480mm (18") | 480mm (18") |
| M - Fork Offset | 43mm (1") | 43mm (1") |
| N - Trail | 81mm (3") | 81mm (3") |
| Wheel Size in Inches | 27.5" | 27.5" |
| Stand Over Height | 442mm (17") | 442mm (17") |
| Rider Height (Range) | 150 - 170 cm (4'11 - 5'7") | 170cm - 185 cm (5'7 - 6'1") |
