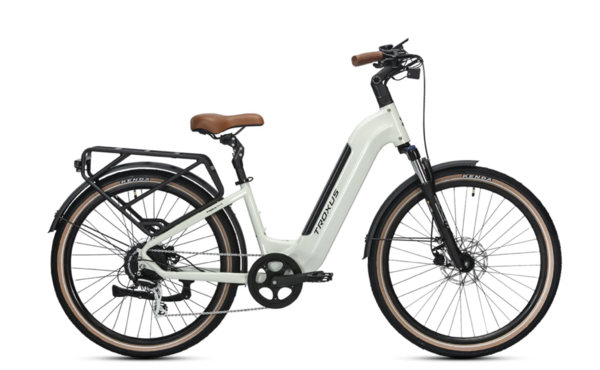

Troxus Trax Plus Commuter 750
$3,299.00
Details
The Trax 750/30 eBike is designed to upgrade your city commute with long-range capability. It features a powerful Bafang® 750W motor and a large 30Ah battery for fewer charges and more trips. Equipped with integrated lights, turn signals, hydraulic disc brakes, and smooth 8-speed shifting, it offers enhanced safety, control, and a seamless ride through urban environments.
Model
Step Thru
Step Thru
Step Over
Frame Size
Small / 15"
Medium / 17"
Large / 20"
Wheel Size
27.5"x2.4"
27.5"x2.4"
27.5"x2.4"
A - Seat Tube Length
381
432
500
B - Seat Tube Angle
72°
72°
72°
C - Head Tube Length
150
150
150
D - Head Tube Angle
68°
69°
69°
E - Effective Top Tube Length
616
631
646
F - Bottom Bracket Height
299.5
299.5
299.5
G - Bottom Bracket Drop
55
55
55
H - Chainstay Length
480
480
480
I - Fork Offset
42
42
42
J - Wheelbase
1172
1177
1192
K - Frame Reach
410
425
440
L - Frame Stack
649
654
654
Fork Travel
65
65
65
Fork Height
505
505
505
